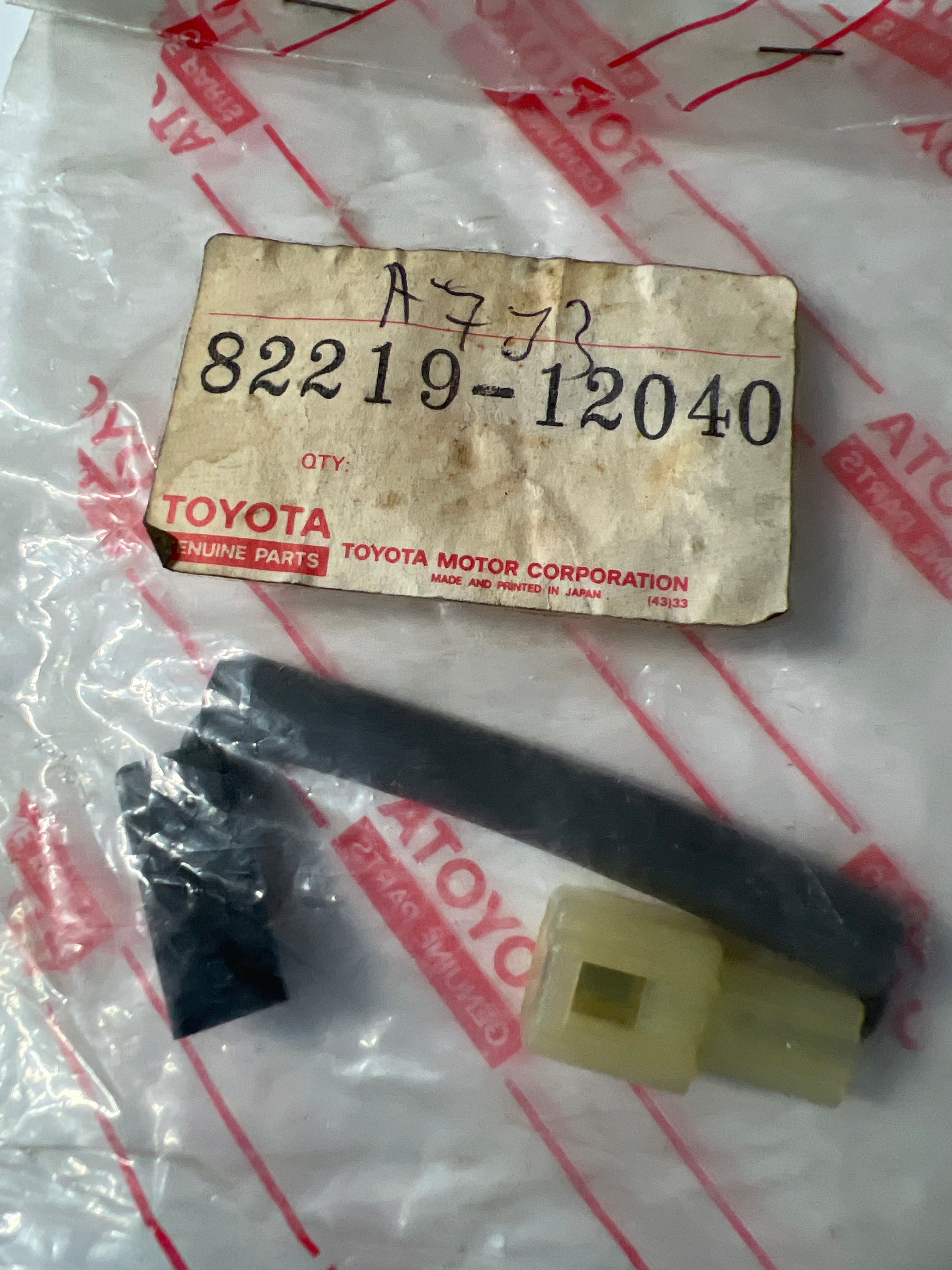

82219-12040 WIRING & CLAMP, toyota

82219-12040 WIRING & CLAMP, toyota, Date range Model Frames/Options Found in diagram
08/1979-06/1987 TOYOTA COROLLA KE70,AE71,TE7*,CE70 82-02: WIRING & CLAMP
Model Dates: Matching Models: Model Options: Links to diagrams:
08/1979-04/1983 KE70L-ECKDS DX, GEN, CP, LHD, 4K, MTM, 4F, 2D 82-02
08/1979-04/1983 KE70L-ECKDSW DX, EUR, EUG, CP, LHD, 4K, MTM, 4F, 2D 82-02
08/1979-04/1983 KE70L-ECMDS DX, GEN, CP, LHD, 4K, MTM, 5F, 2D 82-02
08/1979-04/1983 KE70L-ECMDSW DX, EUR, EUG, CP, LHD, 4K, MTM, 5F, 2D 82-02
08/1979-07/1982 KE70L-EDKDCC DX, EUR, SDN, SED, LHD, 4KC, MTM, 4F, 2D 82-02
08/1979-04/1983 KE70L-EDKDS DX, GEN, SED, LHD, 4K, MTM, 4F, 2D 82-02
08/1979-04/1983 KE70L-EDKDSW DX, EUR, EUG, SED, LHD, 4K, MTM, 4F, 2D 82-02
08/1979-07/1980 KE70L-EDKRS STD, GEN, SED, LHD, 4K, MTM, 4F, 2D 82-02
08/1979-04/1983 KE70L-EDKRSW STD, EUR, EUG, SED, LHD, 4K, MTM, 4F, 2D 82-02
08/1979-04/1983 KE70L-EDMDSW DX, EUR, EUG, SED, LHD, 4K, MTM, 5F, 2D 82-02
08/1981-07/1982 KE70L-EDMNSW GL, EUR, EUG, SED, LHD, 4K, MTM, 5F, 2D 82-02
08/1979-07/1982 KE70L-EEKDCC DX, EUR, SDN, SED, LHD, 4KC, MTM, 4F, 4D 82-02
08/1979-04/1983 KE70L-EEKDS DX, GEN, SED, LHD, 4K, MTM, 4F, 4D 82-02
08/1981-07/1983 KE70L-EEKDSV DX, SAA, SED, LHD, 4K, MTM, 4F, 4D 82-02
08/1979-04/1983 KE70L-EEKDSW DX, EUR, EUG, SED, LHD, 4K, MTM, 4F, 4D 82-02
08/1979-04/1983 KE70L-EEKRS STD, GEN, SED, LHD, 4K, MTM, 4F, 4D 82-02
08/1981-07/1983 KE70L-EEKRSV STD, SAA, SED, LHD, 4K, MTM, 4F, 4D 82-02
08/1979-04/1983 KE70L-EEKRSW STD, EUR, EUG, SED, LHD, 4K, MTM, 4F, 4D 82-02
08/1982-04/1983 KE70L-EEMDCC DX, EUR, SDZ, SED, LHD, 4KC, MTM, 5F, 4D 82-02
08/1979-04/1983 KE70L-EEMDS DX, GEN, SED, LHD, 4K, MTM, 5F, 4D 82-02
08/1979-04/1983 KE70L-EEMDSW DX, EUR, EUG, SED, LHD, 4K, MTM, 5F, 4D 82-02
08/1981-04/1983 KE70L-EEMNS GL, GEN, SED, LHD, 4K, MTM, 5F, 4D 82-02
08/1981-04/1983 KE70L-EEMNSW GL, EUR, EUG, SED, LHD, 4K, MTM, 5F, 4D 82-02
08/1979-04/1983 KE70L-ELKDS DX, GEN, LB, LHD, 4K, MTM, 4F, 2D 82-02
08/1979-04/1983 KE70L-ELKDSW DX, EUR, EUG, LB, LHD, 4K, MTM, 4F, 2D 82-02
08/1979-04/1983 KE70L-ELMDS DX, GEN, LB, LHD, 4K, MTM, 5F, 2D 82-02
08/1979-04/1983 KE70L-ELMDSW DX, EUR, EUG, LB, LHD, 4K, MTM, 5F, 2D 82-02
08/1981-07/1982 KE70LG-EWKDCC DX, EUR, SDN, WG, LHD, 4KC, MTM, 4F, 4D 82-02
08/1979-06/1987 KE70LG-EWKDS XL, GEN, WG, LHD, 4K, MTM, 4F, 4D 82-02
08/1981-07/1983 KE70LG-EWKDSV DX, SAA, WG, LHD, 4K, MTM, 4F, 4D 82-02
08/1979-04/1983 KE70LG-EWKDSW DX, EUR, EUG, WG, LHD, 4K, MTM, 4F, 4D 82-02
08/1979-07/1981 KE70LG-EWKRCC STD, EUR, SDN, WG, LHD, 4KC, MTM, 4F, 4D 82-02
08/1979-06/1987 KE70LG-EWKRS STD, GEN, WG, LHD, 4K, MTM, 4F, 4D 82-02
08/1979-04/1983 KE70LG-EWKRSW STD, EUR, EUG, WG, LHD, 4K, MTM, 4F, 4D 82-02
08/1982-06/1987 KE70LG-EWMDCC DX, EUR, SDZ, WG, LHD, 4KC, MTM, 5F, 4D 82-02
08/1980-06/1987 KE70LG-EWMDSW DX, EUR, EUG, WG, LHD, 4K, MTM, 5F, 4D 82-02
08/1979-06/1987 KE70LG-EYKRS STD, GEN, DV, LHD, 4K, MTM, 4F, 2D 82-02
08/1979-06/1987 KE70LG-EYKRSW STD, EUR, EUG, DV, LHD, 4K, MTM, 4F, 2D 82-02
08/1979-04/1983 KE70LG-EZKDSW DX, EUR, EUG, WG, LHD, 4K, MTM, 4F, 2D 82-02
08/1979-04/1983 KE70LG-EZKRSW STD, EUR, EUG, WG, LHD, 4K, MTM, 4F, 2D 82-02
08/1979-04/1983 KE70R-ECMDS DX, GEN, CP, RHD, 4K, MTM, 5F, 2D 82-02
08/1979-04/1983 KE70R-EDKRS STD, GEN, SED, RHD, 4K, MTM, 4F, 2D 82-02
07/1980-03/1982 KE70R-EDKRSN STD, SA, SED, RHD, 4K, MTM, 4F, 2D 82-02
08/1980-07/1981 KE70R-EDMDSW DX, EUR, EUG, SED, RHD, 4K, MTM, 5F, 2D 82-02
08/1981-07/1982 KE70R-EDMNSW GL, EUR, EUG, SED, RHD, 4K, MTM, 5F, 2D 82-02
08/1981-09/1984 KE70R-EEKDCQ DX, ARL, SED, RHD, 4KC, MTM, 4F, 4D 82-02
08/1979-05/1984 KE70R-EEKDS DX, GEN, SED, RHD, 4K, MTM, 4F, 4D 82-02
08/1981-09/1984 KE70R-EEKRCQ STD, ARL, SED, RHD, 4KC, MTM, 4F, 4D 82-02
08/1979-04/1983 KE70R-EEKRS STD, GEN, SED, RHD, 4K, MTM, 4F, 4D 82-02
07/1980-03/1984 KE70R-EEKRSN STD, SA, SED, RHD, 4K, MTM, 4F, 4D 82-02
08/1981-09/1984 KE70R-EEMDCQ DX, ARL, SED, RHD, 4KC, MTM, 5F, 4D 82-02
08/1979-07/1982 KE70R-EEMDS DX, GEN, SED, RHD, 4K, MTM, 5F, 4D 82-02
12/1980-03/1984 KE70R-EEMDSN DX, SA, SED, RHD, 4K, MTM, 5F, 4D 82-02
08/1980-04/1983 KE70R-EEMDSW DX, EUR, EUG, SED, RHD, 4K, MTM, 5F, 4D 82-02
08/1981-09/1984 KE70R-EEMNCQ GL, ARL, SED, RHD, 4KC, MTM, 5F, 4D 82-02
08/1981-05/1984 KE70R-EEMNS GL, GEN, SED, RHD, 4K, MTM, 5F, 4D 82-02
08/1981-04/1983 KE70R-EEMNSW GL, EUR, EUG, SED, RHD, 4K, MTM, 5F, 4D 82-02
04/1982-01/1985 KE70R-EEMRSN STD, SA, SED, RHD, 4K, MTM, 5F, 4D 82-02
08/1979-07/1982 KE70R-ELKDS DX, GEN, LB, RHD, 4K, MTM, 4F, 2D 82-02
08/1979-04/1983 KE70R-ELMDS DX, GEN, LB, RHD, 4K, MTM, 5F, 2D 82-02
08/1981-09/1984 KE70RG-EWKDCQ DX, ARL, WG, RHD, 4KC, MTM, 4F, 4D 82-02
08/1979-06/1987 KE70RG-EWKDS XL, GEN, WG, RHD, 4K, MTM, 4F, 4D 82-02
08/1981-09/1984 KE70RG-EWKRCQ STD, ARL, WG, RHD, 4KC, MTM, 4F, 4D 82-02
08/1979-04/1983 KE70RG-EWKRS STD, GEN, WG, RHD, 4K, MTM, 4F, 4D 82-02
08/1981-09/1984 KE70RG-EWMDCQ DX, ARL, WG, RHD, 4KC, MTM, 5F, 4D 82-02
08/1980-06/1987 KE70RG-EWMDSW DX, EUR, EUG, WG, RHD, 4K, MTM, 5F, 4D 82-02
08/1981-08/1983 KE70RG-EYKRCQ STD, ARL, DV, RHD, 4KC, MTM, 4F, 2D 82-02
08/1979-06/1987 KE70RG-EYKRS STD, GEN, DV, RHD, 4K, MTM, 4F, 2D 82-02
05/1983-07/1985 KE70RG-EYKRSW STD, EUR, EUG, DV, RHD, 4K, MTM, 4F, 2D 82-02
08/1979-07/1981 KE70RG-EZKDS DX, GEN, WG, RHD, 4K, MTM, 4F, 2D 82-02
08/1979-04/1983 KE70RG-EZKRS STD, GEN, WG, RHD, 4K, MTM, 4F, 2D 82-02
