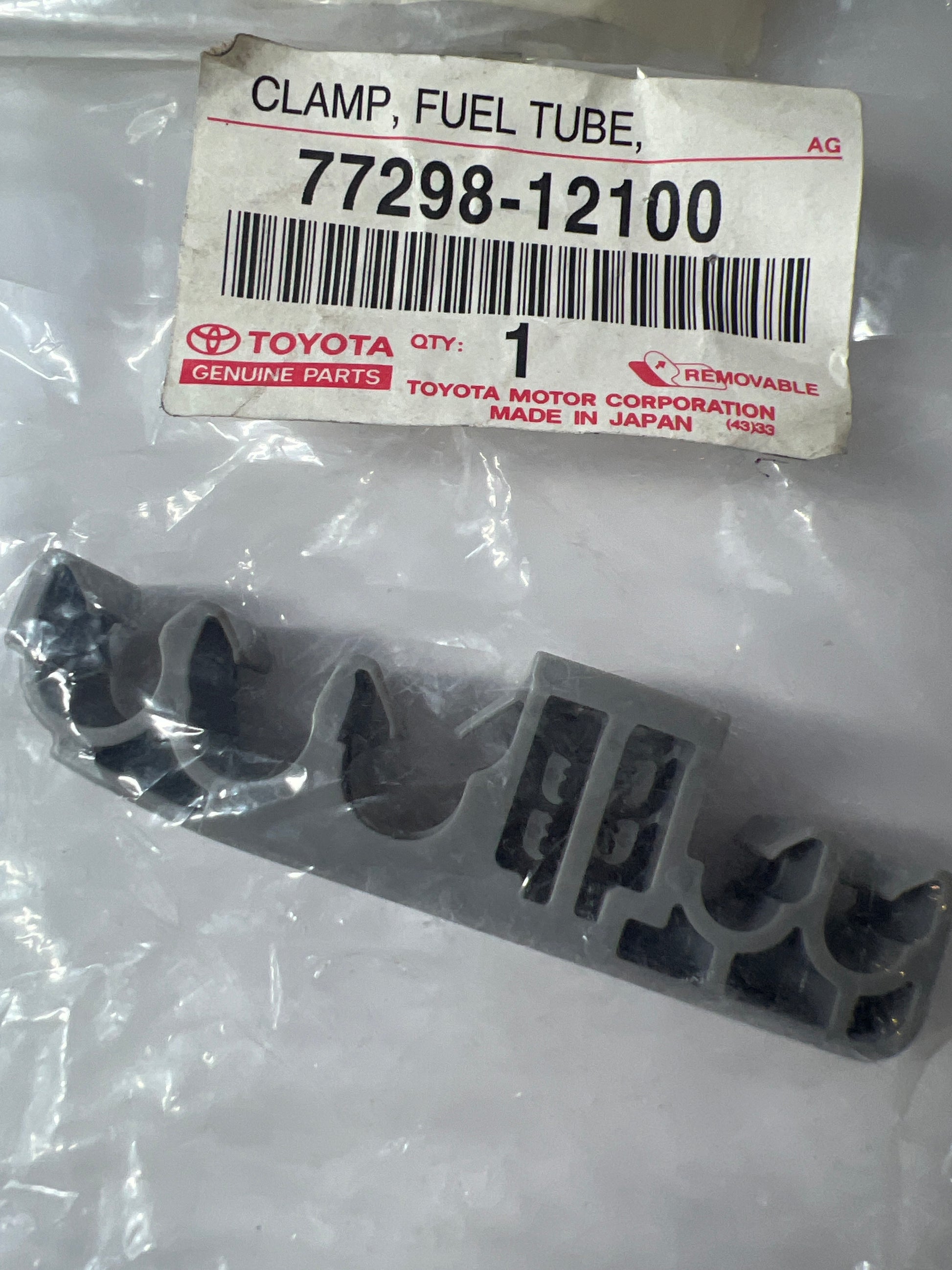

77298-12100 FUEL TANK & TUBE, toyota

77298-12100 FUEL TANK & TUBE, toyota, Date range Model Frames/Options Found in diagram
10/2001-09/2006 TOYOTA COROLLA CDE120,NDE120,ZZE12* 77-01: FUEL TANK & TUBE
Model Dates: Matching Models: Model Options: Links to diagrams:
10/2001-04/2004 CDE120L-AWMDYW TERRA, JPP, EUR, WG, LHD, 1CDFTV, DCR, MTM, 5F 77-01
10/2001-04/2004 CDE120L-AWMNYW SOL, JPP, EUR, WG, LHD, 1CDFTV, DCR, MTM, 5F 77-01
10/2001-04/2004 CDE120R-AWMDYW TERRA, JPP, EUR, WG, RHD, 1CDFTV, DCR, MTM, 5F 77-01
08/2004-09/2006 NDE120L-AEMDYW TERRA, JPP, EUR, SED, LHD, 1NDTV, DCR, MTM, 5F 77-01
05/2004-09/2006 ZZE120L-AEMDKW TERRA, JPP, EUR, SED, LHD, 4ZZFE, HTWC, MTM, 5F 77-01
05/2004-09/2006 ZZE120L-AEMNKW SOL, JPP, EUR, SED, LHD, 4ZZFE, HTWC, MTM, 5F 77-01
10/2001-04/2004 ZZE120L-AWMDKW TERRA, JPP, EUR, WG, LHD, 4ZZFE, HTWC, MTM, 5F 77-01
10/2001-04/2004 ZZE120L-AWMNKW SOL, JPP, EUR, WG, LHD, 4ZZFE, HTWC, MTM, 5F 77-01
05/2004-09/2006 ZZE120R-AEMDKW TERRA, JPP, EUR, SED, RHD, 4ZZFE, HTWC, MTM, 5F 77-01
05/2004-09/2006 ZZE121L-AEMDKW TERRA, JPP, EUR, SED, LHD, 3ZZFE, HTWC, MTM, 5F 77-01
05/2004-09/2006 ZZE121L-AEMNKW SOL, JPP, EUR, SED, LHD, 3ZZFE, HTWC, MTM, 5F 77-01
05/2004-09/2006 ZZE121L-AEPDKW TERRA, JPP, EUR, SED, LHD, 3ZZFE, HTWC, ATM, 4FC 77-01
05/2004-09/2006 ZZE121L-AEPNKW SOL, JPP, EUR, SED, LHD, 3ZZFE, HTWC, ATM, 4FC 77-01
10/2001-04/2004 ZZE121L-AWMDKW TERRA, JPP, EUR, WG, LHD, 3ZZFE, HTWC, MTM, 5F 77-01
10/2001-04/2004 ZZE121L-AWMNKW SOL, JPP, EUR, WG, LHD, 3ZZFE, HTWC, MTM, 5F 77-01
10/2001-04/2004 ZZE121L-AWPDKW TERRA, JPP, EUR, WG, LHD, 3ZZFE, HTWC, ATM, 4FC 77-01
10/2001-04/2004 ZZE121L-AWPNKW SOL, JPP, EUR, WG, LHD, 3ZZFE, HTWC, ATM, 4FC 77-01
05/2004-09/2006 ZZE121R-AEMDKW TERRA, JPP, EUR, SED, RHD, 3ZZFE, HTWC, MTM, 5F 77-01
10/2001-04/2004 ZZE121R-AWMDKW TERRA, JPP, EUR, WG, RHD, 3ZZFE, HTWC, MTM, 5F 77-01
09/2002-09/2006 TOYOTA COROLLA CDE120,NDE120,ZZE12* 77-01: FUEL TANK & TUBE
11/2001-01/2007 TOYOTA COROLLA CDE120,NDE120,ZZE12* 77-01: FUEL TANK & TUBE
09/2001-12/2003 TOYOTA COROLLA VERSO CDE120,ZZE12* 77-01: FUEL TANK & TUBE
01/2002-01/2007 TOYOTA COROLLA CDE120,NDE120,ZZE12* 77-01: FUEL TANK & TUBE
